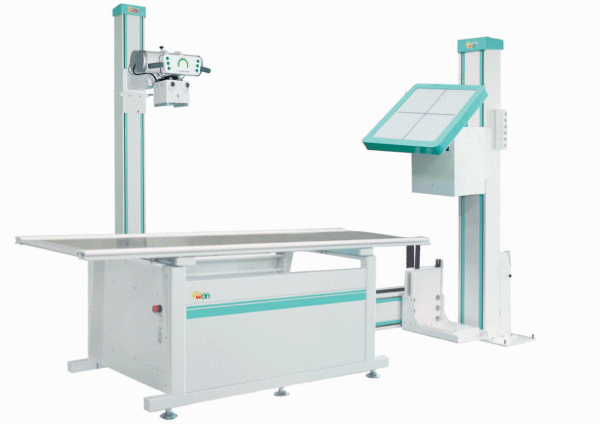

WS-DRT It is Multi-purpose detector support that UP/Down, Left/Right transfer is possible and enables various general Radiographic including Table Radiographic and Stand Radiographic by detectors by remote control by device that support DR detector. * Working voltage : 1 phase 220V 50/60Hz 10%
* Input capacity : 50VA
* Size of bed plate : 2000 X 728mm
* Quality of the material of bed plate : PC
* Right and left transfer of bed plate : Left 400mm, Right 200mm
* Before and transfer of bed plate : 120mm
* Right and left transfer of detector support sieve : 1350mm
* Top and bottom transfer of support sieve : 980mm
Product specification
Product
Item
WS-DRT
Detector supporter
UP / Down travel Distance
705mm
Right / Left travel Distance
1,310mm
UP /Down transport speed
21 mm/sec (33sec)
Right / Left transport speed
65.5 mm/sec (21sec)
Remote control switch
Basis 6 KEY
Power Capacity
200 W
Power
1phase, 230V 10% 50/60 Hz
Table
Size of bed plate
2000 X 728mm
Bed plate Right/Left travel Distance
490mm
Bed plate Front/After travel
120mm
FEATURES
SPECIFICATION
