Can reduce shooting time about 50% than general method when WSR-40 systemfilms human body by high frequency inverter method and because control
console is small and light, is possible by wall tapestry and Radiographic is
available by remote control switch conveniently that user films.
And have A.P. R function to basis.

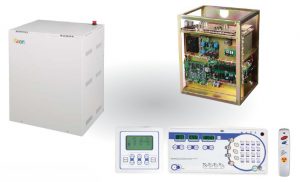

HF Generator
model
WSRF-Series
item
30kW
40kW
50kW
60kW
size
555mm * 445mm * 710mm
weight
92kg
power
supply
1phase 220V/
3phase 380V
1phase 220V/
3phase 380V
3phase380v
3phase380v
radio
kvp
40kvp-125kvp
40kvp-125kvp
40kvp-150kvp
40kvp-150kvp
fluoro
kvp
40kvp-125kvp
40kvp-125kvp
40kvp-130kvp
40kvp-130kvp
radio
mA
50mA-300mA
50mA-500mA
10mA-500mA/650mA
10mA-800mA
fluoro
mA
0.5~5mA
0.5~5mA
0.5~5mA
0.5~5mA
generator
power
out put
300mA @ 100kvp
200mA @ 125kvp
500mA @ 80kvp
300mA @ 100kvp
200mA @ 125kvp
600mA @ 80kvp
500mA @ 100kvp
300mA @ 150kvp
800mA @ 75kvp
500mA @ 120kvp
300mA @ 150kvp
mAs
limits
0.5mAs-500mAs
0.5mAs-600mAs
0.1mAs-800mAs
0.1mAs-800mAs
fluoro
time
0-5min
0-5min
0-5min
0-5min
A.P.R
mode
technical
selector
system
self
diagnosis
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error
selective
anatomical
mode,
576mode, AEC+768mode
bucky1-table,
bucky2-stand,
AUX
rotor error,
filament error,
tube over
heat error,
exposure
time error
WSRF-50 system human body general Radiographic and Fluoroscopic are possible R/F system by highfrequency inverter mode and when Fluoroscopic is very convenient that user operates because console
that can control condition is attached on R/F table. When Fluoroscopic, can use more conveniently
if use ABS and AEC function that is option function.
HF Generator
FEATURES
SPECIFICATION
