Description

Technical Specification

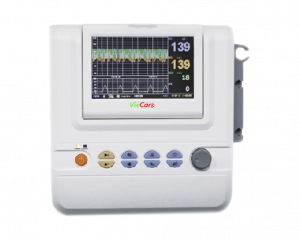

Name of product : Fetal /Maternal monitor

Model : FM-300P

• Fetal Heart Rate Transducer : Multi-crystals, pulsed doppler , high sensitively Strength: <5mW/cm²
• Working frequency : 1.0MHz
• Signal processing : Special DSP system and modern recognization.
• Measurement range : 60bpm ~210bpm
• Alarm Range :
  High limit: 160bpm,170bpm,180bpm,190bpm
  Low limit : 90bpm,100bpm,110bpm,120bpm
• Maximum audio output power : 1.5 Watt
• Toco Measurement range: 0 units ~100 units
• Display : The LCD displays FHR, TOCO, FM , maternal parameters , time, date, volume and so on, It can store and play back the data.
• Power : a.c.100V – 240V, 50/60Hz or 14.8v Li – ION battery
• Power Consumption : < 20W
• Dimension : 355mm (length) ×340mm (width) ×106mm (height) Net weight Three-parameter type: 4Kg;
• Environment
  Working environment : Temperature: +5℃～+40℃ Humidity < 85％
  Atmospheric pressure 86KPa～106KPa
• Transducer Acoustic Output : Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal-average intensity does not exceed 100mW/cm2
• GEL : Viscous aqueous non-sensitizing , hypo-allergenic and non-irritating to skin. Indefinite shelf life, Bacteriostat (not sterile)

Brochure Link download :

https://drive.google.com/file/d/1NrHb0iYMeJhFiPiUqXpNvlASky1iNYlF/view?usp=sharing
