WSM-300
WSM-300

Mobile X-Ray

Category: Brand: Won Solution

Description

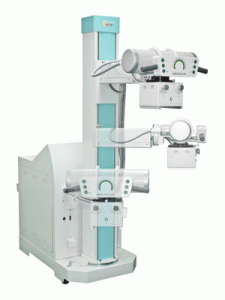

WSM-3002
WSM-3002

WSM-300
WSM-300

WSM-300

WSM-300

MODEL
WSM-300
WSM-300P
CONTROL UNIT
300mA at 100kVp
200mA at 125kVp
HIGH VOLTAGE
TRANSFORMER
High Frequency Inverter
X-RAY TUBE UNIT
ROTATING ANODE TYPE
TUBE
SUPPORT
UNIT
LOCKING
ELECTRO-MAGNETIC
LOCK FOR MOVEMENT
OF TRANSVERSE,
VERTICAL AND TUBE ROTATION
VERTICAL TRAVEL
770mm ~ 1770mm
TRANSVERSE TRAVEL
700mm ~ 870mm
ROTATION OF
VERTICAL COLUMN
180AT EACH 90 POSITIONS MANUALLY
ROTATION OF
X-RAY TUBE UNIT
180AT EACH 90 POSITIONS
ANGLE INDICATOR
CIRCULAR
COLLIMATOR
MANUAL DRIVE 24V/ 100W MORE THAN 160Lux
HIGH VOLTAGE CA BLE
3mx2 FEDERAL ENDS
MOBILE CART
LOCKING SYSTEM WITH CASSETTE BOX
POWER CONSUMPTION
SINGLE PHASC 220V,
50/60 30KVA
SINGLE PHASC 220V,
50/60 3KVA(PSU IN)
DIMENSIONS
MOBILE CART:600Wx1,065Lx1040Hm/ TUBE SUPPORT
UNIT:210Wx970Lx1,910Hm
NET WEIGHT
APPROX. 350kg

FEATURES

SPECIFICATION
