Description
TRANSPORT VENTILATOR
EMVIE 7000

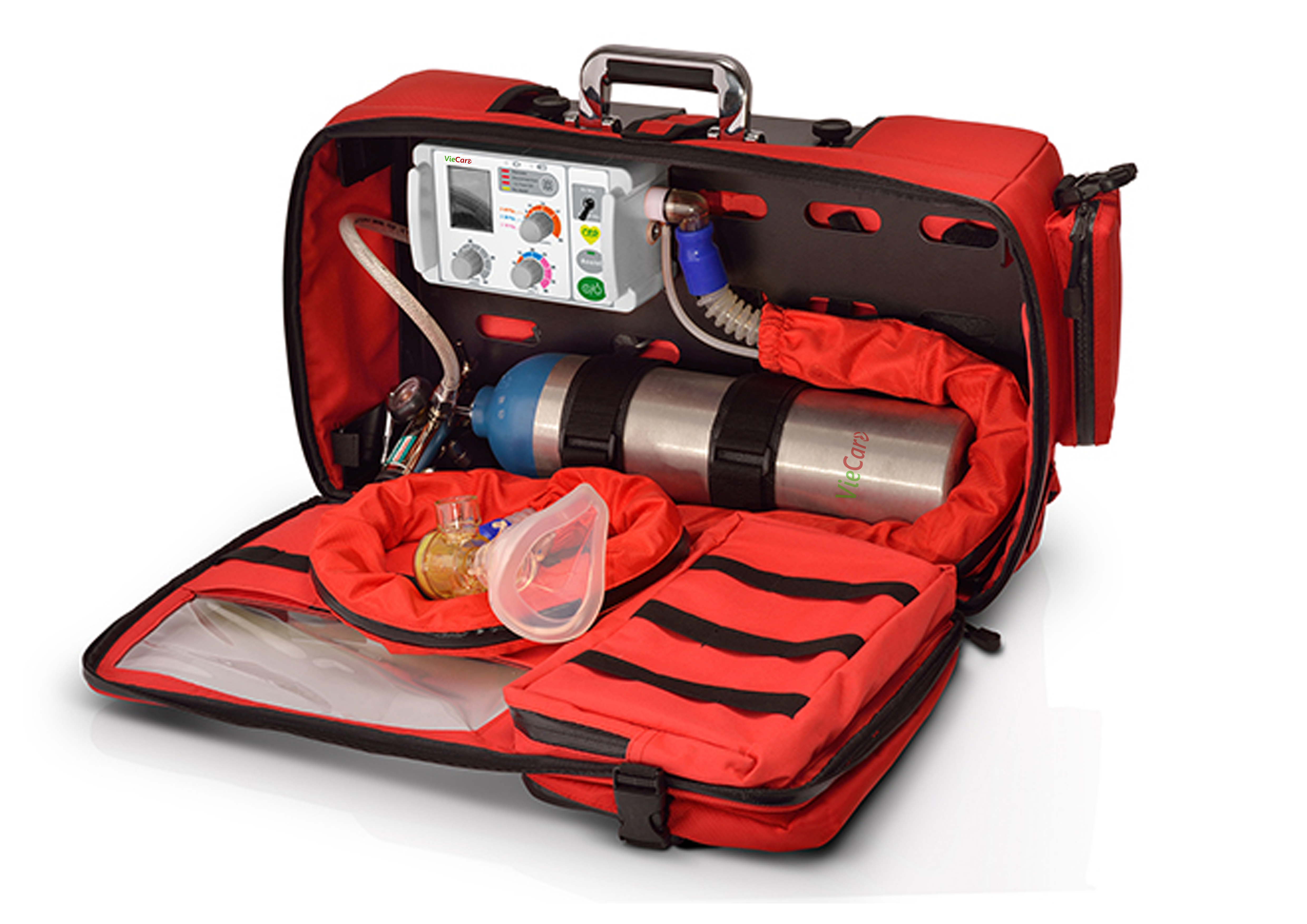

EMVIE 7000 – TRANSPORT EMERGENCY VENTILATOR
Rescue – Transport
EMVIE 7000
FEATURES
- Compact and lightweight
- Simple operationqTFT color LCD screen
- Air mixing function
- IPPV, Assist, and CPR modes
- Smart voice guidance and alarm system
- Alarm system ensures high level of safety
- Independent settings for minute volume, respiratory rate, and maximum pressure
- Long battery operating time
- Work simultaneously with Amoul® E6 CPR device to ensure effective cardiopulmonary resuscitation
- EN1789 certified
APPLICATION
Rescue, ambulance, vehicle transport, long-distance transport, intra-hospital transport
VENTILATOR SPECIFICATION
|
Ventilation modes |
IPPV、ASSIST、MANUAL |
|
Respiration Rate:( Freq.) |
Continuously variable from 5 to 40 min-1 (5 to40 bpm) |
|
Minute volume(MV) |
Continuously variable from 3 to 20 L/min(ATPD) |
|
O2 concentration |
Air Mix or No Air Mix Refer USER MANUAL |
|
Max. ventilation pressure |
20 to 60 mbar |
|
Insp-exp. Ratio |
Constant 1:1.67 |
|
Trigger sensitivity |
-2 mbar Deviation ±0.5mbar |
|
MV tolerances |
±20% |
|
Pressure gauge accuracy |
0 to 60 mbar Deviation ±5% |
|
Patient valve resistance: |
Inspiration: ＜6 mbar at 30、60 L/min
Expiration: ＜6 mbar at 30、60 L/min Emergency air intake: ＜6 mbar at 15、30 L/min |
