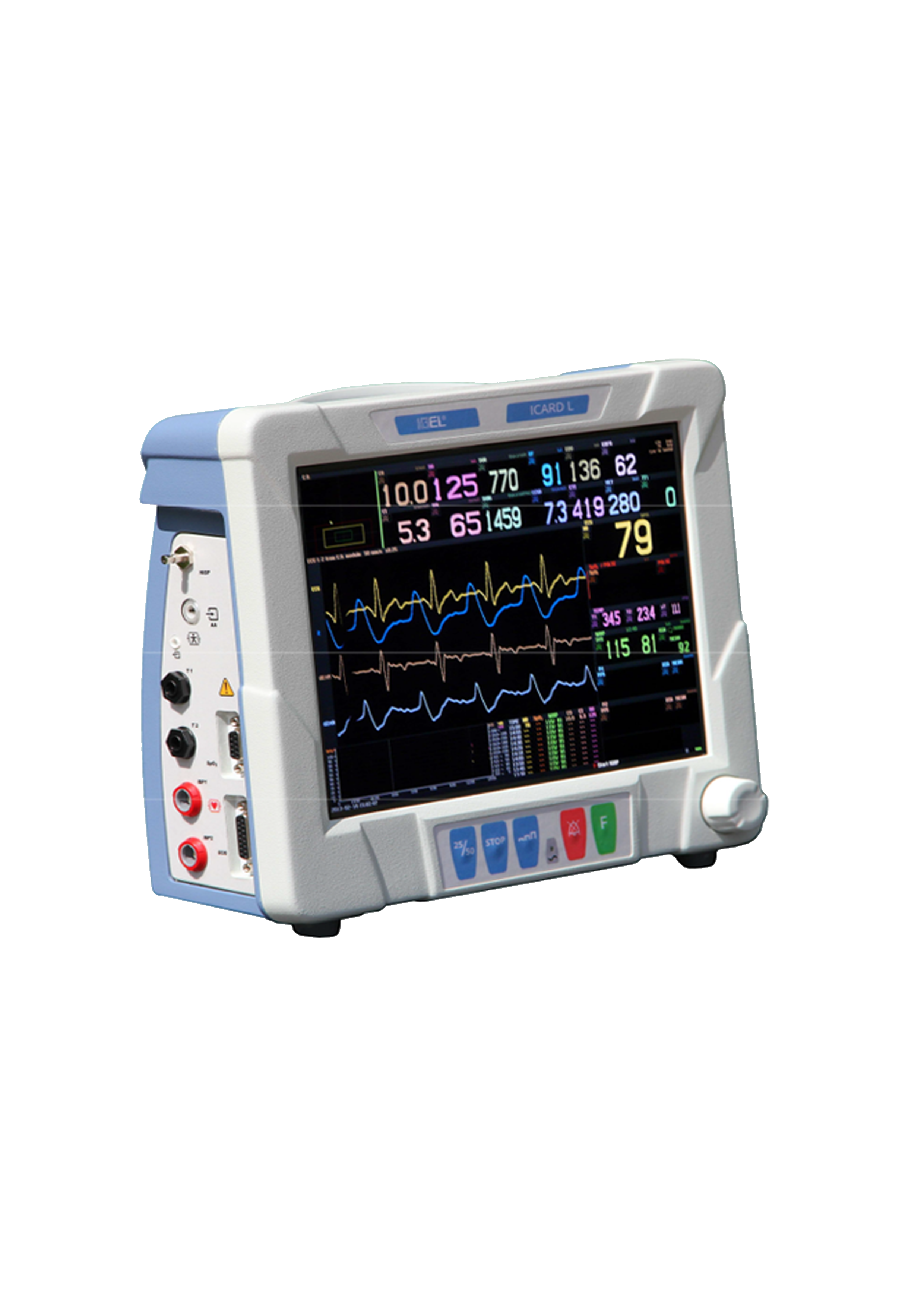

ICARD L Patient Monitors with 12.1″ displays
Multiparameter monitors, designed for mounting at anesthesia apparatus and for monitoring patients requiring measurement of a greater number of parameters.

Simple operation, extensive self-diagnostic functions and automatic calibration make ICARD L an user-friendly device that guarantees long-term operation at low operating costs

We offer measurement and supervision of the following parameters:

• ECG – Three or five-electrode cable. Simultaneous presentation of 1, 2 or 3 leads, measurement of heart rate, acoustic and optical QRS signaling. ST segment elevation measurement, and as an option – arrhythmia analysis.
• PULSE OXIMETRY (SpO₂) – Measurement with a wide range of sensors, eg on the finger, ear, hand or foot of the child. Measurement of pulse rate in peripheral blood vessels and plethysmogram presentation.
• NIBP – Measurement activated manually or automatically. Automatic correction of the cuff inflating pressure, a special measurement algorithm for newborns. A wide range of cuffs – from newborns to obese adults.
• IBP – Two-channel measurement using typical disposable transducers. Automatic setting of the scale and initial alarm limits depending on the selected label describing the type of pressure being measured.
• CAPNOGRAPHY (CO₂) – Side-stream measurement of EtCO₂, FiO₂ and respiratory rate. Presentation of the breathing wave, apnea supervision, signaling of the occlusion of the sampling line. Sample flow 50 ml/min.
• TEMPERATURE – Two-channel measurement using the YSI400 standard probes. Presentation of two temperatures and their difference.
• CARDIAC OUTPUT – Based on impedance cardiography, non-invasive measurement of Cardiac Otput (CO), Cardiac Index (CI), Stroke Volume (SV) and nine other haemodynamic parameters. Read more
• MAINSTREAM GAS MONITORING – External multigas analyzer measuring carbon dioxide (CO₂), nitrous oxide (N₂O) and five anaesthetic agents with dual agent identification capabilities.
• SIDESTREAM GAS MONITORING – Internal multigas analyzer measuring carbon dioxide (CO₂), nitrous oxide (N₂O), oxygen (O₂ – paramagnetic method) and five anaesthetic agents with dual agent identification capabilities. Sample flow 50 ml/min.
• DEPTH OF ANAESTHESIA – similar to BIS, determined on the basis of EEG analysis, qCON index on a scale of 0-100. Optionally, the second parameter – the nociception index qNOX.
