Description

Simple bedside monitors ICARD M

Designed to monitor the main vital parameters of the patient in the postoperative rooms

Characteristic features:
● case dimensions (without holder): – 268 x 185 x 124 mm
● weight: – about 3.0 kg
● display: – 8,4” LED backlit
● display resolution: – 800 x 600 pixels (SVGA)
● battery operation time – 3.5 – 4 hours, depending on the operation mode

Electrocardiography (ECG)

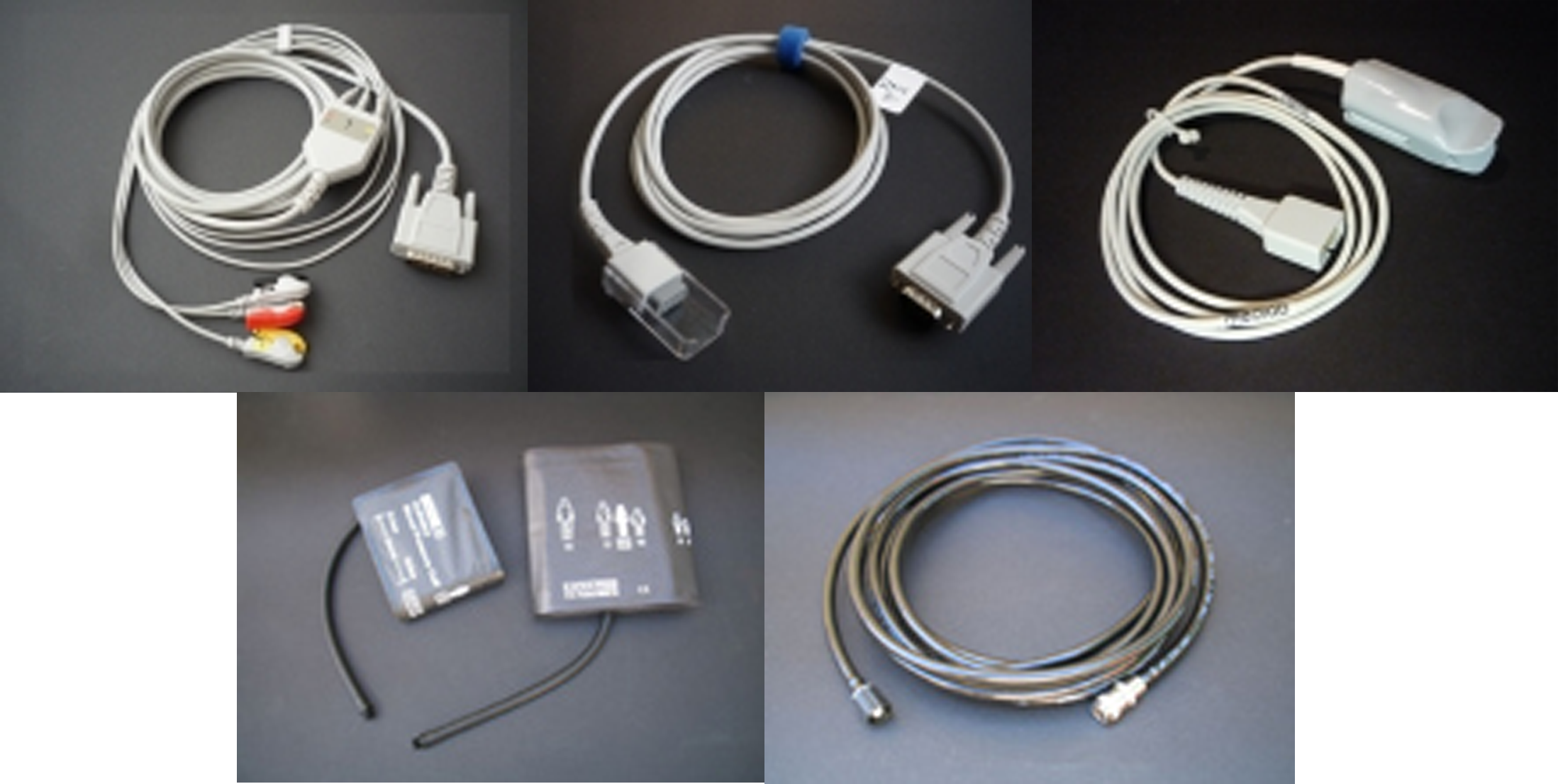

• Cable with three or five electrodes
• Presentation of 3 of 7 leads: I, II, III, aVR, aVL, aVF, Vx (with afive-electrode cable)
• Heart rate

Pulse oximetry

• Pulse rate
• Oxygenation ( SpO)
• Perfusion Index (PI)
• Plethysmogram

NIBP

• Presentation of the values of SYS, DIA, MEAN pressure
• Measurement algorithms for adults, children and newborns

Invasive blood pressure measurement (single channel IBP)

• Presentation of the values of SYS, DIA, MEAN pressure
• Pressure wave
• Labels describing the pressure wave: P, ART, CVP, PA, ICP, UAC, UVC

Side stream capnography (sampling flow 50 ml / min.)

• EtCO2, FiCO, respiration rate
• Capnogram

Thermometry (single channel)

• Skin or deep temperature (depends on sensor type)

Options

Communication module with the central station -2.4 GHz wireless connection

Brochure & Specification Link Download :

https://drive.google.com/file/d/1a7lDppD52c_w0n1Be2CJ-Z6fWSE58S88/view?usp=sharing
